Black 2 Core DC Cable Low Toxicity High Voltage And Current Carrying Capacity

Name: Black 2 Core DC Cable Low Toxicity High Voltage And Current Carrying Capacity
Brand: Pntech
Price: 1 USD

Wholesale Black 2 Core DC Cable Low Toxicity High Voltage And Current Carrying Capacity from china suppliers

Brand Name : Pntech

Model Number : PV1-F 2x4mm2

Certification : TUV/CE/ISO9001

Place of Origin : China

MOQ : 100m

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50000m per day

Delivery Time : 3-10days

Packaging Details : 100m/roll

Product name : DC 2 Core Solar cable

Insulation : XLPE

Sheath : XLPE

Conductor : Tinned copper

Struction : 2*56/0.3mm

Rate Voltage : 1KV AC 1800V DC

Core : 2 core

Color : Black

Contact Now

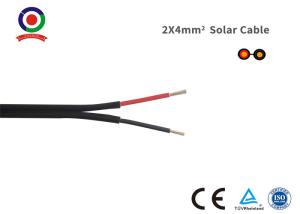

TUV PV1-F 2 PFG 1169 Flat XLPE double insulation 2x4mm2 DC 2 Core Solar cable

Description:

Cross-Section: 2×4mm2
Rated temperature: -40~90C
Rated Rating:DC:1/1.8kv AC:0.6kv
Rated Current: 41~98A
Weathering Resistance: Sun Res

Specification:

Item	Unit	Technical parameter
Rated temperature	°C	-40~90
Rated Rating	ac/dc(kv)	0.6~1.0/1.8
Cable Core	No.	2
Cross-Section Area	mm2	2×2,5	2×4,0	2×6,0	2×10	2×16
Number/ Diameter of wires	NO./mm	2*50/0.25	2*52/0.3	2*84/0.3	2*142/0.3	2*128/0.4
Thickness of the Insulation	mm	≥0.5	≥0.6	≥0.7	≥0.8	≥1.0
Thickness of the Sheath	mm	≥0.5	≥0.6	≥0.7	≥0.8	≥0.9
Cable OD./Flat	mm	11*5	13*6	15*7	20*9	22*10
Conductor resistance(20°C)	Ω/km	≤9.45	≤7.98	≤3.30	≤1.91	≤1.24
Voltage test on completed cable	kV/min	6.5/5 No breakdown

Advantage:

· Dual wall insulation.Electron beam cross-linked
· Excellent resistance to U.V,oil,greases,oxygen and ozone
· Excellent resistance to abrasion
· Halogen free, flame retardant,low toxicity
· Excellent flexibility and stripping performance
· High Voltage and Current carring capacity
· TUV approved
