Product Description:
The Solar PV Cable is a high-quality energy cable specifically designed for use in photovoltaic (PV) systems, ensuring reliable and efficient power transmission from solar panels to the electrical grid or storage systems. This cable is an essential component in household electrical cable setups and distributed PV system cable configurations, providing superior performance and durability under various environmental conditions.
One of the standout features of the Solar PV Cable is its excellent electrical resistance, rated at 3.39 Ω/km (maximum at 20℃). This low resistance level ensures minimal power loss during transmission, which is crucial for maximizing the efficiency of solar energy systems. By maintaining optimal conductivity, the cable helps to deliver consistent energy output, making it ideal for both residential and commercial solar power installations.
The conductor of the Solar PV Cable is constructed with a precise configuration of 84 strands of 0.28mm diameter copper wires. This conductor size offers a perfect balance of flexibility and conductivity, allowing for easy installation while ensuring robust electrical performance. The multi-strand design enhances the cable's flexibility, making it suitable for a variety of installation environments, including tight spaces and complex routing paths.
The cable's outer jacket is made from XLPO (cross-linked polyethylene), a material known for its excellent thermal, mechanical, and chemical properties. XLPO provides outstanding resistance to heat, UV radiation, and weathering, ensuring the cable can withstand prolonged exposure to harsh outdoor conditions without degradation. This makes the Solar PV Cable highly reliable for long-term use in solar power systems installed on rooftops or in open field environments.
Designed to operate at a voltage rating of up to 1500V, the Solar PV Cable meets the stringent requirements of modern solar installations, supporting high-voltage applications that are becoming increasingly common in the solar industry. This high voltage rating not only enhances the cable’s suitability for large-scale distributed PV system cable networks but also contributes to improved system efficiency and safety.
As a household electrical cable, the Solar PV Cable is engineered to deliver safety and reliability for residential solar setups. It complies with relevant industry standards and regulations, ensuring that it can be safely integrated into home electrical systems. Its robust design reduces the risk of electrical faults, short circuits, and fire hazards, providing peace of mind to homeowners and installers alike.
The Solar PV Cable is also an excellent choice for distributed PV system cable applications, where multiple solar modules are interconnected over a wide area. Its durability and resistance to environmental factors enable it to maintain performance even in challenging outdoor conditions, making it ideal for distributed solar farms and community solar projects. The cable’s ability to handle high voltage and its low resistance contribute to the overall efficiency and reliability of distributed energy systems.
In summary, the Solar PV Cable is a premium energy cable tailored for the demands of solar power generation. Its combination of low resistance, robust XLPO jacket, suitable conductor size, and high voltage rating makes it an indispensable component in household electrical cable systems and distributed PV system cable networks. Whether for residential solar panels or large-scale solar farms, this cable ensures efficient, safe, and long-lasting energy transmission, supporting the advancement of renewable energy solutions worldwide.
Features:
-
Product Name: Solar PV Cable
-
Jacket Material: XLPO for enhanced durability and weather resistance
-
Maximum Resistance: 3.39 Ω/km at 20℃ ensuring efficient energy transmission
-
Cable Outer Diameter (OD): 6.1 ± 0.2 mm for compact and flexible installation
-
Mold Number: H1Z2Z2-K 1x6mm² meeting industry standards
-
DC Voltage Rating: 1500V suitable for high voltage solar power systems
-
Ideal for use as a Household Electrical Cable providing safe and reliable connections
-
Designed as an Energy Cable optimized for solar photovoltaic applications
-
Black Solar PV Panels cable offering UV resistance and aesthetic integration
Technical Parameters:
|
Product Name
|
Solar PV Cable
|
|
Jacket Material
|
XLPO
|
|
Cable OD
|
6.1 ± 0.2 mm
|
|
Diameter
|
6.1 ± 0.2 mm
|
|
Conductor Size
|
84/0.28 mm
|
|
Resistance
|
3.39 Ω/km (MAX. at 20℃)
|
|
DC Voltage
|
1500V
|
|
Sheath Colour
|
Red Black
|
|
Customized Support
|
OEM/ODM
|
|
HS Code
|
8544492100
|
Applications:
The Solar PV Cable model H1Z2Z2-K is a high-quality electrical cable designed specifically for solar power applications. Originating from China, this cable comes with multiple certifications including TUV, CE, ISO9001, CQC, CPR, and BCA, ensuring its compliance with international safety and performance standards. With its XLPO insulation and jacket material, the cable is engineered to withstand harsh environmental conditions, making it ideal for long-term use in solar energy systems.
This cable is primarily used in Hybrid Solar PV System cable setups, where reliability and durability are critical. The H1Z2Z2-K cable supports a voltage rating of 1500V, making it suitable for both residential and commercial solar power installations. Its robust construction allows it to efficiently transmit power generated by ASTRO Solar Panels cable arrays, ensuring minimal energy loss and maximum efficiency.
In household electrical cable applications, this solar PV cable is a dependable choice for integrating solar power systems with home electrical grids. It provides excellent insulation and protection, which is essential for maintaining safety in domestic environments. The cable’s XLPO jacket material offers superior thermal resistance, flame retardance, and mechanical strength, which are crucial for household solar setups subjected to varying weather conditions.
Packaged in convenient 100-meter rolls, the H1Z2Z2-K cable facilitates easy handling and installation. The minimum order quantity is 500 meters, with pricing available through negotiation to accommodate different project scales. Delivery times range from 7 to 25 days, depending on order size and destination. Payment terms include T/T and L/C at sight, offering flexibility to buyers worldwide.
With a supply ability of 10,000,000 meters, this solar PV cable model is readily available to meet large-scale demands. Its HS Code is 8544492100, which simplifies customs processing and international shipping. The specific mold number H1Z2Z2-K 1x6mm2 identifies the cable’s design and specification, ensuring customers receive the exact product required for their solar power projects.
Overall, the H1Z2Z2-K Solar PV Cable is an excellent solution for various solar energy scenarios, including hybrid solar PV systems, ASTRO solar panel installations, and household electrical cable applications. Its high voltage rating, durable XLPO insulation, and comprehensive certifications make it a reliable and efficient choice for harnessing solar energy safely and effectively.
Customization:
Our Solar PV Cable, model number H1Z2Z2-K, is expertly designed to meet the demanding requirements of Distributed PV System cable applications as well as Household Electrical Cable installations. Manufactured in China, this cable ensures high quality and reliability, certified by TUV, CE, ISO9001, CQC, CPR, and BCA standards.
The insulation is made of premium XLPO material, providing excellent resistance with a maximum of 3.39 Ω/km at 20℃, and supports a DC voltage rating of up to 1500V, making it ideal for Huasun Solar Panels cable systems. The cable diameter is precisely 6.1+/-0.2mm, ensuring compatibility and ease of installation.
We offer customized services with OEM/ODM support, accommodating your specific requirements to optimize performance and integration. The product is supplied in convenient 100m rolls, with a minimum order quantity of 500 rolls to meet both small and large scale project needs.
Pricing is negotiable to provide the best value for your investment. Our supply ability reaches up to 10,000,000 units, ensuring timely availability. Delivery times range from 7 to 25 days depending on order size and customization.
Flexible payment terms are accepted, including T/T and L/C at sight, to facilitate smooth transactions. Choose our Solar PV Cable for a reliable and customizable solution for your solar energy and electrical cable needs.
Support and Services:
Our Solar PV Cable product comes with comprehensive technical support and services to ensure optimal performance and reliability in your solar power installations. We provide detailed product documentation, including installation guidelines and safety standards, to assist you throughout the setup process.
Our technical support team is available to offer expert advice on cable selection, system compatibility, and troubleshooting. We also provide testing and certification information to guarantee compliance with international quality and safety standards.
Additionally, we offer customized solutions tailored to specific project requirements, including cable lengths and configurations. Our commitment to customer satisfaction includes ongoing maintenance support and warranty services to help you maximize the lifespan and efficiency of your Solar PV Cable systems.
Packing and Shipping:

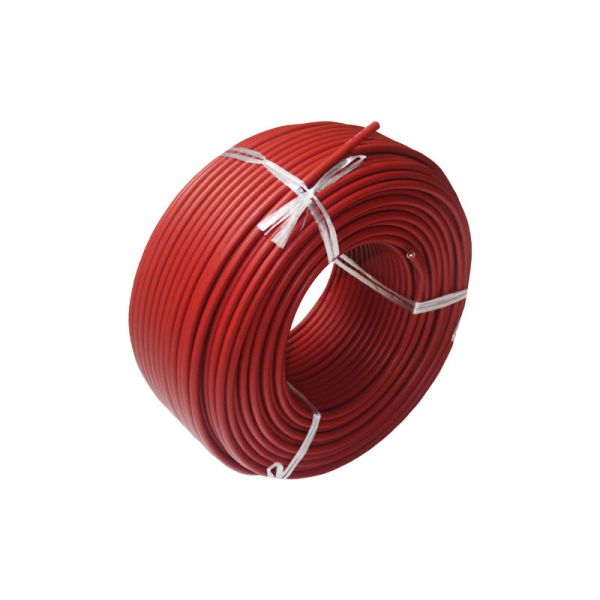

The Solar PV Cable is carefully packaged to ensure maximum protection during transit. Each cable is coiled neatly and secured with durable ties to prevent tangling and damage. The coils are then wrapped in a protective plastic film to safeguard against moisture, dust, and UV exposure.
Multiple coils are placed in sturdy cardboard boxes that are reinforced to withstand rough handling and stacking during shipping. The boxes are clearly labeled with product specifications, handling instructions, and safety warnings to ensure proper care throughout the supply chain.
For large orders, the boxes are palletized and shrink-wrapped to provide additional stability and protection. All shipments are handled by experienced logistics partners to guarantee timely and safe delivery to the customer’s location.
FAQ:
Q1: What is the model number of this Solar PV Cable?
A1: The model number of this Solar PV Cable is H1Z2Z2-K.
Q2: Where is this Solar PV Cable manufactured?
A2: This Solar PV Cable is manufactured in China.
Q3: What certifications does this Solar PV Cable have?
A3: The cable is certified with TUV, CE, ISO9001, CQC, CPR, and BCA.
Q4: What is the minimum order quantity for this Solar PV Cable?
A4: The minimum order quantity is 500 meters.
Q5: What are the payment terms and delivery time?
A5: Payment terms are T/T and L/C at sight. The delivery time ranges from 7 to 25 days.
Q6: How is the Solar PV Cable packaged?
A6: The cable is packaged in rolls of 100 meters each.
Q7: What is the supply ability of this product?
A7: The supply ability is 10,000,000 meters.
Q8: Is the price fixed for the Solar PV Cable?
A8: The price is negotiable depending on order quantity and specifications.
