TUV approved Male and Female IP67 30A 1500V DC (1Pair) solar pv connector
Description:
Conductor pin is tinned Copper£º It makes a rock solid connection after you crimp the pin to the wire, and these are operated perfectly under heavy load
WATERPROOF RING on connection is perfect to seal out water and dust to prevent corrosion, Nylon INSULATION MATERIAL with excellent aging resistance and UV endurance, survived rain, high force winds and snow for more than 20 years!
Rated voltage -1500V DC; Rated Current:30A; These solar connectors' degree of waterproof is IP67 and design with sealing ring for dust resistance.
Waterproof ring on connection is perfect to seal out water and dust to prevent corrosion. Quick & simple assembly processing and simple removal of plugs.
| Type: connector PV005 |
| Electrical Features: |
| Rated Current | 25A(2.5/4mm2),30A(4/6mm2) |
| Withstanding Voltage | 1500V DC(TUV),600V(UL) |
| Contact Resistance | ≤0.3mΩ |
| Protection Class | Class II |
| Mechanical Features: |
| Temperature Range | -40 oC~+90oC |
| Protection Degree | IP2X,unmated;IP67,mated |
| Wire Size Range | 2.5/4/6mm2(14AWG,12AWG,10AWG) |
| Unmating Force | 200 Newton |
| Material Features: |
| Insulation Material | PPO |
| Contact Material | Copper,Tin plated |
| Flame Class | UL94-V0 or UL94-5VA |
Advantage:
• Simple,quick,safe and effective filed assembly
• Develop independently,innovative design,have independent intellectual property rights,adaptive to connector directly
• High mechanical endurance
• High current and voltage carrying:30A,1500VDC
• Low transition resistance
• Innovative sealed,waterproof,dust resistance design:IP68
• Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application
• Approved by TUV

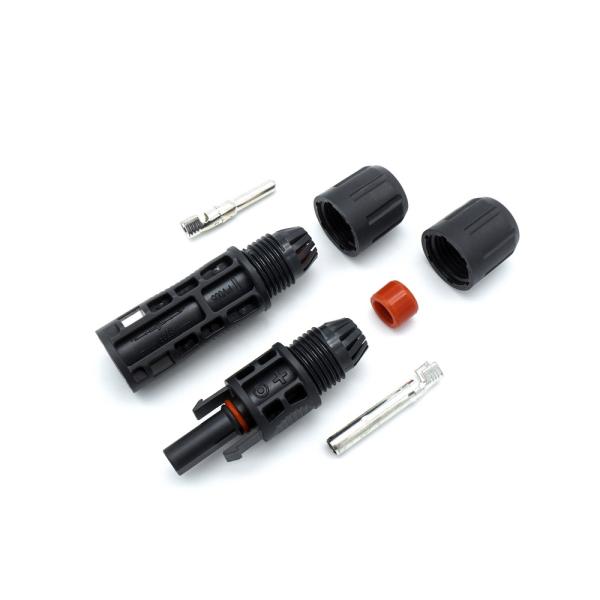

Picture of 1500V solar connector:
FAQ:
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the connector. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.
