IP67 Solid Pins DC1000V 30A Solar Panel Connectors

  • 1
  • 2

Brand Name : Pntech

Model Number : SAA-T4-S

Certification : TUV/CE/ISO9001

Place of Origin : China

MOQ : 1set

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 5000pairs per day

Delivery Time : 3-10days

Packaging Details : 100sets/polybag 500sets/carton

Product name : Solid pins solar connector

Material : PPO

Gender : Female and male

Rated Voltage : 1000VDC

Protection Degree : IP67

Color : Black

Contact material : Copper/tin plated

Pins : Solid pins

Contact Now

IP67 solid pins solar connector DC 1000V for Solar Panel Installation Multi Connection

The Features of solar connector


1. Simple assembly, easy to use
2. Suitable for different sizes of PV cable
3. Waterproof grade: IP67
4. Housing made of PPO material, anti-UV
5. High current carrying capacity
6. Contact material: Copper Tin Plated
7. High heat resistance, wear-resisting
8. Rated Voltage: 1000V
9. Rated Current: 30A

10.Pins: Solid pins

Type: connector PV004
Electrical Features:
Rated Current 25A(2.5/4mm2),30A(4/6mm2)
Withstanding Voltage 1000V DC(TUV),600V(UL)
Contact Resistance ≤0.3mΩ
Protection Class Class II
Mechanical Features:
Temperature Range -40 oC~+90oC
Protection Degree IP2X,unmated;IP67,mated
Wire Size Range 2.5/4/6mm2(14AWG,12AWG,10AWG)
Unmating Force 200 Newton
Material Features:
Insulation Material PPO
Contact Material Copper,Tin plated
Flame Class UL94-V0 or UL94-5VA

Advantage:

• Simple,quick,safe and effective filed assembly

• Develop independently,innovative design,have independent intellectual property rights,adaptive to connector directly

• High mechanical endurance

• High current and voltage carrying:30A,1000VDC

• Low transition resistance

• Innovative sealed,waterproof,dust resistance design:IP68

• Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application

• Approved by TUV

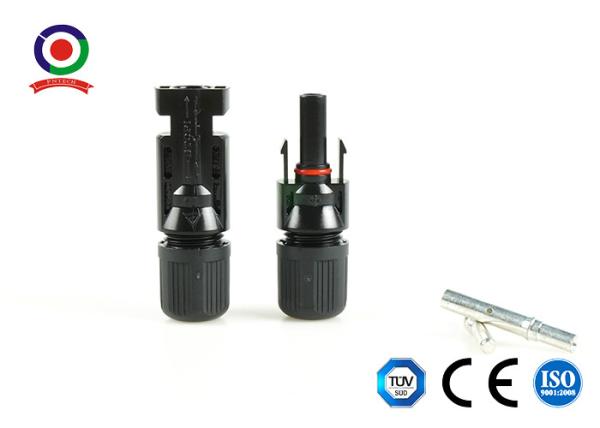

Picture of IP67 solar connector

IP67 Solid Pins DC1000V 30A Solar Panel Connectors
