4mm Solar Panel Extension Extended Cable Wire Cord with Connector TUV CE
Description
1. For outdoor use and it is moisture,UV and corrosion resistant.
2. Male and Female Hard plastic connector at the end.
3. Black + Red Solar Panel Extension Cable Wire.
4. Extends and locks built-in cables.
5. Voltage: DC 1000V & AC 1800V.
6. Application: used for solar power board, solar energy power station.
7. Range of cross section: 2.5mm2~10mm2.
Construction
1. Rating:Voltage: 600/1000V Temperature:-40°C-- 90°C
2. Description:
(1) Conductor: Tinned annealed copper
(2) Insulation:90°C XLPE , black
(3) Jacket:90°C XLPE , black or red
3. Marking:TüV 2 PfG 1169 PV1-F 1×4mm2
| Type | Cross Section | Strand Design | Conductor Diameter | Conductor Resistance | Outer Diameter | Rated Voltage | Rated Current |
| H1Z2Z2-K 1x4mm2 | 4mm2 | 56x φ0.3mm | 2.6mm | 5.09 Ω/km | 5.9mm | 1500VDC | 55A |
Applications
Single conductor, sunlight-resistant, photovoltaic wire rated 90°C wet or 105°C dry 2000V for interconnection wiring of grounded and ungrounded photovoltaic power systems as described in Section 690.31(A) and other applicable parts of the National Electrical Code (NEC), NFPA 70
Options:
Colored phase ID stripes available on request
Multi-plexing available on request
Features:
Rated 90°C wet and dry
Deformation-resistant at high temperatures
Excellent moisture resistance,
Stable electrical properties over a broad temperature range
Excellent resistance to crush and compression cuts
Resistant to most oils and chemicals
UV/sunlight-resistant
Meets cold bend test at -40°C
| Product Name | TUV Standard Solar Cable |
| Model NO. | H1Z2Z2-K 1x 4mm2 |
| Voltage | High Voltage Cable |
| Insulation Material | XLPE |
| Material Shape | Round Wire |
| Certification | ROSH, CE, TUV |
| Standards | TUV EN50618 |
| Cores | 1 Core |
| Transport Package | Iron-Wooden Drum, Iron Drum |
| Application | Construction, Underground, Industrial, Power Station |
| Sheath Material | XLPE |
| Wire Core Material | Tinned Copper |
| Cross Section | 4mm2 |
| Rate voltage: | 1000v |
| Rated current: | 22A(2.5mm2) , 30A(4mm2,6mm2) |
| Test voltage: | 6KV(50Hz) |
| Protect degree: | IP67/IP2X |
| Insulation material: | PC/PA/PPO/TPE |
| Contact material: | Silver plated copper |
| Operating temperature: | -40°C~+90°C |
| Safe class: | 2 |
| Flame class: | UL94-V0 |
| Contact resistance of plug connectors: | ≤5mΩ |
| Insertion force: | ≤50N |
| Withdraw force: | ≥50N |
| Suitable cable: | 2.5mm2/4mm2/6mm2(AWG14/12/10) |
| Locking system: | Snap in |
| Product No. | DC-DC |
| Rated voltage | TUV 1000V DC |
| Rated current | 30A |
| Suitable cable cross sections | 2.5mm2 ~ 10.0mm2 / 14AWG ~ 8AWG |
| Terminal size | Φ4.0mm |
| Test voltage | DC 8KV 1min |
| Pollution degree | 2 |
| Protection class | Class II |
| Terminal Material | Tinned copper |
| Contact resistance | ≤ 5mΩ |
| Insulation Materials | PPC |
| IP rating | IP67(IEC 60529) |
| Pull-out force | ≥ 50N |
| Insertion Force | ≤ 50N |
| Test temperature | -40ºC~ +85ºC |
| Flame Class | UL94V - 0
|
(We also produce single core of 2.5mm2, 6mm2, 10mm2 and 16mm2, as well as dual cores,
please consult me directly if necessary)

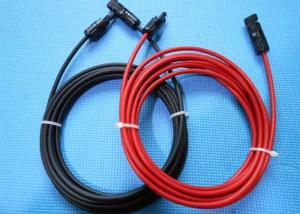

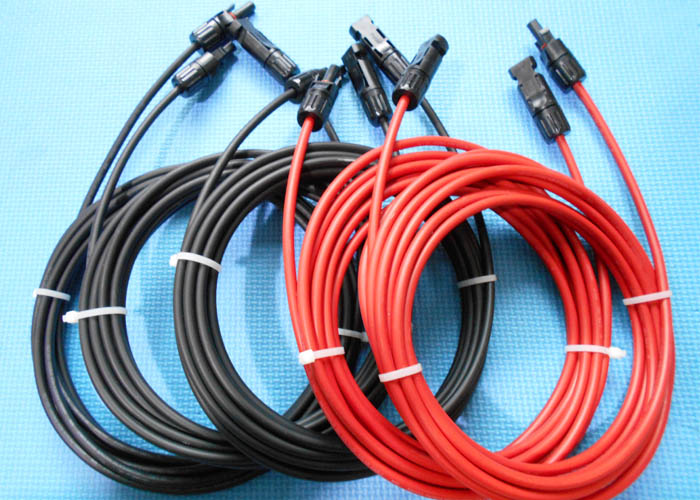

Pictures of 4mm2 DC solar Cable with connector
